External 箱外

Weights 重量

Length长度

Width宽度

Height高度

Max Gross Weight最大总重

Tare Weight

自重

Max Payload

最大载重

6,058 mm

2,438 mm

2,438 mm

33,000 Kg

3,200 Kg

29,800 Kg

20’

8’ - 6”

8’ - 6”

72,750 Lbs

7,050 Lbs

65,700 Lbs

Internal 箱内

Door Opening 开门尺寸

Roof Opening 开顶尺寸

Length 长度

Width 宽度

Height 高度

Width 宽度

Height 高度

Length 长度

Width 宽度

5,894 mm

2,352 mm

2,093.5 mm

2,114 mm

1,700 mm

5,540 mm

2,184 mm

19'-4 1/16"

7'-8 19/32"

6'-10 7/16"

6'-1 15/64"

5'-6 59/64"

18'-2 1/8"

7'-1 63/64"

Allowable Stacking Weight 允许堆码重量

Cubic Capacity 容积

192,000 Kg

423,280 Lbs

29 M³

1025 FT³

Special Feature 特点

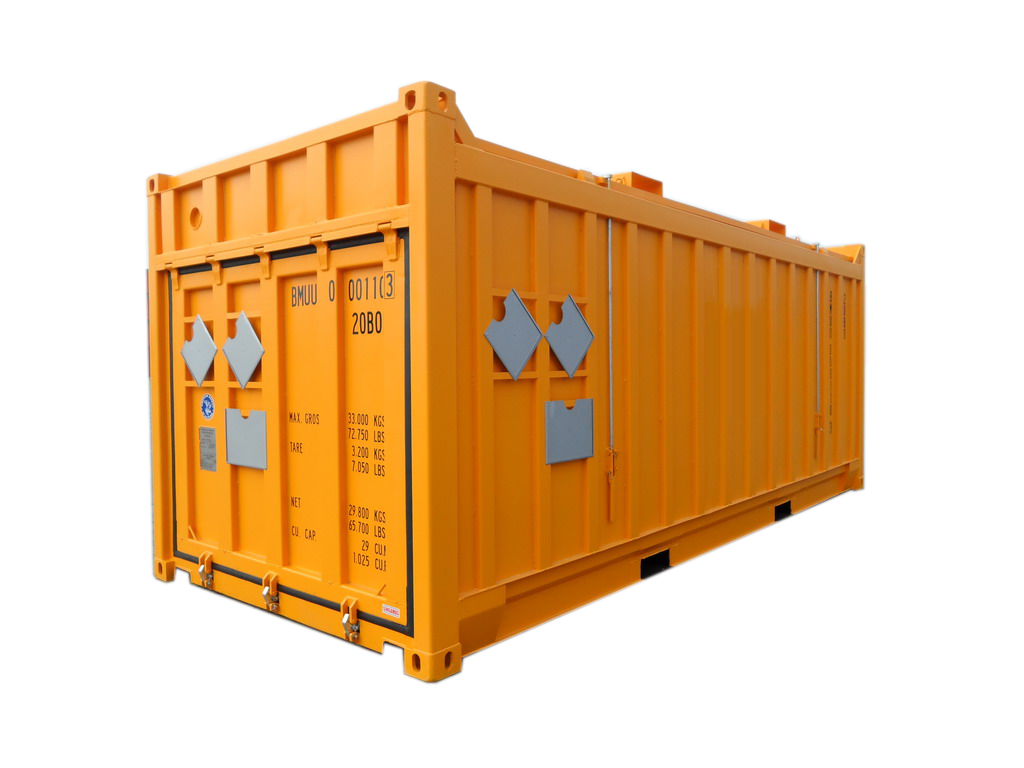

1. Removable steel roof for cargo loading.

顶部为硬质钢顶，可拆卸便于装卸货物。

2. Coping locking device with longer swinging distance, adjusts the length of the locking bar to adjust

the locking situation of the coping.

顶盖锁杆行程较大，可以调节顶盖锁杆长度来调整顶盖的锁紧程度。

3. Steel floor.

钢地板。

4. Upturned door, to open and close in the side for keeping safety.

上翻门，侧面操作开启关闭，以保证人员安全。
